1500W Power Inverter 12V DC to AC TS-1500-212B Meanwell 12V 220V Inverter

FOB Reference Price:Get Latest Price
$254.60 - $370.00 / Pieces | 1 Piece/Pieces (Min. Order)
Output Power:
1500W
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Mean Well
Model Number:
TS-1500-212B
Output Type:
Single
Size:
420*220*88mm (L*W*H)
Weight:
6.81Kg
Input Voltage:
12V
Output Voltage:
200/220/230/240VAC
Type:
DC/AC Inverters
Output Frequency:
50±0.1Hz
Output Current:
None
Product:
12V 220V Inverter
Input Voltage Range:
10.5 ~ 15VDC
Efficiency:
88%
Input DC Current:
150A
Warranty:
3 years
Working Temp.:
0 ~ +40°C
Working Humidity:
20% ~ 90% Range humidity non-condensing
Battery Type:
Open & sealed Lead Acid
Waveform:
True sine wave (THD<3%)
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month 12V 220V Inverter
Packaging & Delivery
Packaging Details
6.81Kg; 2pcs/14.6Kg/1.61CUFT( 12V 220V Inverter)
Port
Shanghai / Ningbo / Shenzhen



1500W Power Inverter 12V DC to AC TS-1500-212B Meanwell 12V 220V Inverter

Detailed Images





Product Overviews

1500W Power Inverter 12V DC to AC TS-1500-212B Meanwell 12V 220V Inverter

Features:

  • Meanwell 12V 220V Inverter
  • True sine wave output (THD<3%)
  • High surge power up to 3000W
  • High efficiency up to 91%
  • Power ON-OFF switch
  • Standby saving mode can be selectable
  • Front panel indicator for operation status
  • Thermostatically controlled cooling fan
  • Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temperature / Output short / Input polarity reverse / Overload
  • Applications: Home appliance, power tools, office and portable equipment, vehicle and yacht...etc
  • Optional monitoring software
  • 3 years warranty

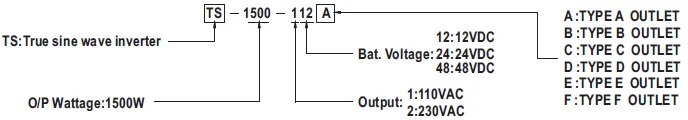

Model Series:

TS-1500-112 / TS-1500-124 / TS-1500-148 / TS-1500-212 / TS-1500-224 / TS-1500-248

Detailes:

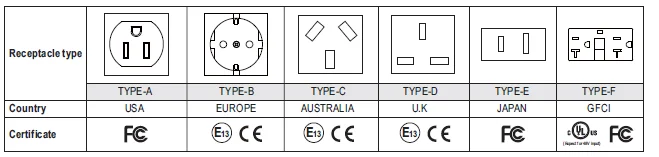

AC Output Receptacles (optional):


ModelTS-1500-212BTS-1500-224BTS-1500-248B
OUTPUTRATED POWER1500W
MAXIMUM OUTPUT POWER1725W for 180 sec. / 1875W for 10 sec. / surge power 3000W for 30 cycles
AC VOLTAGE200 / 220 / 230 / 240VAC selectable by setting button
FREQUENCY50±0.1Hz     50/60Hz selectable by setting button S.W
WAVEFORMTrue sine wave (THD<3%)
AC REGULATION (Typ.)±3.0%
SAVING MODE (Typ.)Default disabled. Load ≤ 5Wwill be changed to standby mode
FRONT PANEL INDICATORBattery voltage level, output load level, saving mode, fault and operation status
INPUTBAT. VOLTAGE12V24V48V
VOLTAGE RANGE (Typ.)10.5 ~ 15VDC21 ~ 30VDC42 ~ 60VDC
DC CURRENT (Typ.)150A75A37.5A
NO LOAD CURRENT DRAW (Typ.)≤18W @ standby saving mode
OFF MODE CURRENT DRAW≤1mA
EFFICIENCY (Typ.)  88%90%91%
BATTERY TYPESOpen & sealed Lead Acid
BATTERY INPUT  PROTECTIONFUSE40A*530A*330A*2
BAT. LOW ALARM11.3±4%22.5±4%45±4%
BAT. LOW SHUTDOWN10.5±4%21±4%42±4%
BAT. POLARITYBy internal fuse open
OUTPUT PROTECTIONOVER TEMPERATURE68°C±5°C
Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH3 detect on heatsink of power transistor
OUTPUT SHORTProtection type : Shut down o/p voltage, re-power on to recover
OVER LOAD (Typ.)105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.
Protection type : Shut down o/p voltage, re-power on to recover
GFCI PROCTECTIONNone
ENVIRONMENTWORKING TEMP.0 ~ +40°C @ 100% load ; +60°C @ 50% load
WORKING HUMIDITY20% ~ 90% RH non-condensing
STORAGE TEMP. HUMIDITY-30 ~ +70°C / -22 ~ +158 °F 10 ~ 95% RH
VIBRATION10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMCSAFETY STANDARDSU458 (only for "GFCI" receptacle-Type F )
LVDEN60950-1
WITHSTAND VOLTAGEBat. I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
ISOLATION RESISTANCEBat. I/P-AC O/P, AC O/P-FG:100M Ohms / 500VDC / 25°C / 70%RH
EMC EMISSIONCompliance to EN55022 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark
EMC IMMUNITYCompliance to EN61000-4-2,3,8
OTHERSCONTROL WIRINGRJ11 -RS232 (Option)
DIMENSION420*220*88mm (L*W*H)
PACKING6.81Kg; 2pcs/14.6Kg/1.61CUFT
NOTE1.Output derating capacity referenced by curve 1.
2.THD and Efficiency is tested by 1000W, linear load at 13V/26V/52V input voltage.
3.Intput derating capacity referenced by curve 2
4.All parameters not specified above are measured at rated load, 25°C of ambient temperature
5.DC Curremt is tested by 1500W, linear load at 13V/26V/52V input voltage.
6.The tolerance of each voltage value by models is:112/212→ ±0.5V;124/224→ ±1V;148/248→ ±2V
