Meanwell 60 Watt 20V 3A PLC-60-20 Class 2 Power Supply Led Backlight Driver Board

FOB Reference Price:Get Latest Price
$18.00 - $23.70 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Mean Well
Model Number:
PLC-60-20
Output Power:
60W
Output Type:
Single
Input Voltage:
90~264VAC 127~370VDC
Output Voltage:
20V
Output Frequency:
47~63Hz
Output Current:
3A
Product:
Meanwell PLC-60-20 Class 2 Power Supply Led Backlight Driver Board
Dimension:
181.5*62*35mm (L*W*H)
Warranty:
2 years
Efficiency:
87.5%
Working Temp.:
-30 ~ +50°C
Voltage Adj. Range:
19.5 ~ 22V
Current Adj. Range:
2.25 ~ 3.09A
Over Voltage:
23 ~ 26V
Protections:
Short circuit / Overload / Over voltage /Over temperature
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
0.41Kg; 30pcs/13.3Kg/0.67CUFT
Port
Shanghai / Ningbo / Shenzhen
Picture Example:
package-img
package-img



Meanwell 60 Watt 20V 3A P LC-60-20 Class 2 Power Supply Led Backlight Driver Board

Product Overviews

 Features:

  • Meanwell LED Drivers 60 Watt
  • Universal AC input / Full range
  • High efficiency up to 89%
  • Adjustable output voltage and current level
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • Fully isolated plastic case with terminal block style of I/O
  • Built-in active PFC function, comply with EN61000-3-2 class C ( ≥75% load)

  • Class 2 power unit

  • Pass LPS

  • 100% full load burn-in test

  • High reliability

  • Suitable for LED lighting and moving sign applications (Note.2)

  • Compliance to worldwide safety regulations for lighting

  • 2 years warranty

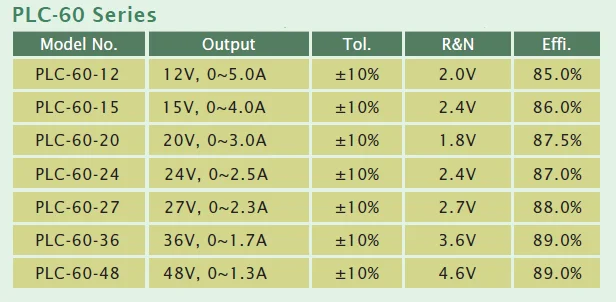

Model Series:

PLC-60-12 / PLC-60-15 / PLC-60-20 / PLC-60-24 / PLC-60-27 / PLC-60-36 / PLC-60-48


Detailes:



MODELPLC-60-12PLC-60-15PLC-60-20PLC-60-24
OUTPUTDC VOLTAGE12V15V20V24V
CONSTANT CURRENT REGION8.4 ~ 12V10.5 ~15V 14 ~ 20V 16.8 ~24V
RATED CURRENT5A4A3A2.5A
CURRENT RANGE0~5A0 ~ 4A 0 ~ 3A 0 ~ 2.5A
RATED POWER60W60W60W60W
RIPPLE & NOISE2Vp-p2.4Vp-p 1.8Vp-p 2.4Vp-p
VOLTAGE ADJ. RANGE11.5 ~ 13V14.5 ~ 16.2V19.5 ~ 22V24 ~ 26V
CURRENT ADJ. RANGE3.75~5.15A3 ~ 4.12A2.25 ~ 3.09A1.875 ~ 2.575A
VOLTAGE TOLERANCE±10%
LINE REGULATION±3.0%
LOAD REGULATION±5.0%
SETUP TIME1500ms / 230VAC    3000ms / 115VAC at full load
INPUTVOLTAGE RANGE90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE47 ~ 63Hz
POWER FACTORPF>0.98/115VAC, PF>0.9/230VAC at full load (Please refer to "Power Factor Characteristic" curve)
EFFICIENCY85%86%87.5%87%
AC CURRENT0.8A / 115VAC        0.4A / 230VAC
INRUSH CURRENTCOLD START 35A(twidth=35μs measured at 50% Ipeak) at 230VAC
LEAKAGE CURRENT<0.75mA / 240VAC
PROTECTIONOVER CURRENT95 ~ 110%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUITHiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE13.8 ~ 16V17.5 ~ 21V 23 ~ 26V 28 ~ 32V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE95°C±10°C(TSW1) detect on heatsink of power transistor
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENTWORKING TEMP.-30 ~ +50°C (Refer to "Derating Curve")
WORKING HUMIDITY20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY-40~+80°C,10~95% RH
TEMP. COEFFICIENT±0.03%/°C(0 ~ 50°C )
VIBRATION10 ~ 500Hz, 2G 12min./1cycle, period for 72min.each along X, Y,Z axes
SAFETY & EMCSAFETY STANDARDSU1310, TUV EN61347-1, EN61347-2-13, CAN/CSA C22.2 No. 223-M91(except for 48V), J61347-1, J61347-2-13 approved
WITHSTAND VOLTAGEI/P-O/P:3.75KVAC     I/P-FG:2KVAC     O/P-FG:0.5KVAC
ISOLATION RESISTANCEI/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH
EMC EMISSIONCompliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (≥75% load) ; EN61000-3-3
EMS IMMUNITYCompliance to EN61000-4-2,3,4,5,6,8,11, EN55024,EN61547, light industry level,  criteria A
OTHERSMTBF515K hrs min. MIL-HDBK-217F (25°C)
DIMENSION181.5*62*35mm (L*W*H)
PACKING0.41Kg; 30pcs/13.3Kg/0.67CUFT



Mechanical Specification:



Block Diagram:

Derating Curve:                                                           Static Characteristics:

Meanwell LED Drivers 60 Watt 20V 3A P LC-60-20 Class 2 Power Supply
