Original Meanwell 150W Power Supply RSP-150-15 15V 10A General Power Supply

FOB Reference Price:Get Latest Price
$21.20 - $28.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Mean Well
Model Number:
RSP-150-15
Output Power:
101 - 200W
Output Type:
Single
Output Voltage:
15V
Output Frequency:
47~63Hz
Output Current:
10A
Input Voltage:
110V
Product:
15V 10A Power Supply
Dimension:
199*99*30mm (L*W*H)
Output Rated Power:
150W
Efficiency:
88.5%
Warranty:
3 Years
Voltage Adj. Range:
14.3 ~ 16.5V
Cooling:
By Free Air Convection
Working Temp.:
-30 ~ +70°C
Working Humidity:
20 ~ 90% Humidity range non-condensing
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
0.6Kg; 24pcs/15.4Kg/1.01CUFT
Port
Shanghai / Ningbo / Shenzhen

Original Meanwell 150W Power Supply RSP-150-15 15V 10A General Power Supply

Product Overviews



Features:

  • Meanwell 15V 10A Power Supply
  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.93
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Built-in constant current limiting circuit
  • Remote ON-OFF control
  • LED indicator for power on
  • 1U low profile 30mm
  • 100% full load burn-in test
  • Fixed switching frequency at PFC: 67KHz   PWM: 134KHz
  • 3 years warranty

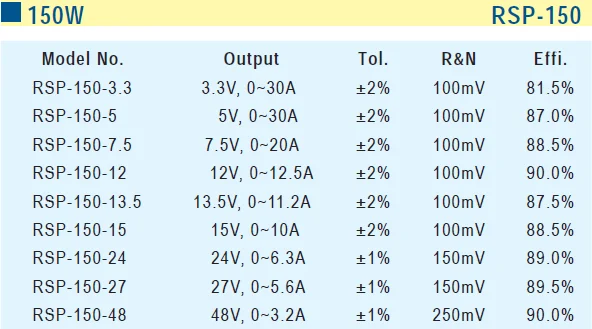

Model Series:

RSP-150-3.3 / RSP-150-5 / RSP-150-7.5 / RSP-150-12 / RSP-150-13.5
RSP-150-15 / RSP-150-24 / RSP-150-27 / RSP-150-48


Details:

Model No.RSP-150-3.3RSP-150-5RSP-150-7.5RSP-150-12RSP-150-13.5
OUTPUTDC VOLTAGE3.3V5V7.5V12V13.5V
RATED CURRENT30A30A20A12.5A11.2A
CURRENT RANGE0 ~ 30A 0 ~ 30A 0 ~ 20A 0 ~ 12.5A0 ~ 11.2A
RATED POWER99W150W150W150W151.2W
RIPPLE & NOISE100mVp-p100mVp-p100mVp-p100mVp-p100mVp-p
VOLTAGE ADJ. RANGE3.14~3.63V4.75~5.5V7.13~8.25V11.4~13.2V12.8~14.9V
VOLTAGE TOLERANCE±2.0%±2.0%±2.0%±2.0%±2.0%
LINE REGULATION±0.5%±0.5%±0.5%±0.5%±0.5%
LOAD REGULATION±1.0%±1.0%±1.0%±0.5%±0.5%
SETUP, RISE TIME600ms, 30ms at full load
HOLD UP TIME16ms at full load
INPUTVOLTAGE RANGE 85 ~ 264VAC      120 ~ 370VDC
FREQUENCY RANGE47 ~ 63Hz
POWER FACTORPF>0.93/230VAC     PF>0.98/115VAC at full load
EFFICIENCY81.5%87%88.5%90%87.5%
AC CURRENT1.6A/115VAC        0.8A/230VAC
INRUSH CURRENTCOLD START 40A/230VAC
LEAKAGE CURRENT<2.0mA / 240VAC
PROTECTIONOVERLOAD105 ~ 135% rated output power
Protection type: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE3.63~4.46V5.5~6.75V8.25~10.13V13.2~16.2V14.85~18.2V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE100°C ± 5°C (TSW1) detect on main power transformer for 3.3V ~ 7.5V;
105°C ± 5°C (TSW1) detect on main power transformer for others
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTIONREMOTE CONTROLCN1: <0~0.8VAC POWER ON, 4~10VDC POWER OFF
ENVIRONMENTWORKING TEMP.-30 ~ +70°C (Refer to "Derating Curve")
WORKING HUMIDITY20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY-20 ~ +85°C , 10 ~ 95% RH
TEMP. COEFFICIENT±0.05%/°C (0 ~ 50°C)
VIBRATION10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY&EMCSAFETY STANDARDSU60950-1, TUV EN60950-1, CCC GB4943 approved; Design refer to EN60335-1
WITHSTAND VOLTAGEI/P-O/P:3.75KVAC     I/P-FG:1.875KVAC     O/P-FG:0.5KVAC
ISOLATION RESISTANCEI/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C  / 70% RH
EMC EMISSIONCompliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, GB9254 ClassB
EMC IMMUNITYCompliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
OTHERSMTBF290.7K hrs min.  MIL-HDBK-217F (25°C)
DIMENSION199*99*30mm (L*W*H)
PACKING0.6Kg; 24pcs/15.4Kg/1.01CUFT



Model No.RSP-150-15RSP-150-24RSP-150-27RSP-150-48
OUTPUTDC VOLTAGE15V24V27V48V
RATED CURRENT10A6.3A5.6A3.2A
CURRENT RANGE0 ~ 10A 0 ~ 6.3A 0 ~ 5.6A 0 ~ 3.2A
RATED POWER150W151.2W151.2W153.6W
RIPPLE & NOISE100mVp-p150mVp-p150mVp-p250mVp-p
VOLTAGE ADJ. RANGE14.3~16.5V22.8~26.4V25.7~29.7V45.6~52.8V
VOLTAGE TOLERANCE±2.0%±1.0%±1.0%±1.0%
LINE REGULATION±0.5%±0.5%±0.5%±0.5%
LOAD REGULATION±0.5%±0.5%±0.5%±0.5%
SETUP, RISE TIME600ms, 30ms at full load
HOLD UP TIME16ms at full load
INPUTVOLTAGE RANGE 85 ~ 264VAC      120 ~ 370VDC
FREQUENCY RANGE47 ~ 63Hz
POWER FACTORPF>0.93/230VAC     PF>0.98/115VAC at full load
EFFICIENCY88.5%89%89.5%90%
AC CURRENT1.6A/115VAC        0.8A/230VAC
INRUSH CURRENTCOLD START 40A/230VAC
LEAKAGE CURRENT<2.0mA / 240VAC
PROTECTIONOVERLOAD105 ~ 135% rated output power
Protection type: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE16.5~20.25V26.4~32.4V29.7~36.45V52.8~64.8V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE100°C ± 5°C (TSW1) detect on main power transformer for 3.3V ~ 7.5V;
105°C ± 5°C (TSW1) detect on main power transformer for others
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTIONREMOTE CONTROLCN1: <0~0.8VAC POWER ON, 4~10VDC POWER OFF
ENVIRONMENTWORKING TEMP.-30 ~ +70°C (Refer to "Derating Curve")
WORKING HUMIDITY20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY-20 ~ +85°C , 10 ~ 95% RH
TEMP. COEFFICIENT±0.05%/°C (0 ~ 50°C)
VIBRATION10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY&EMCSAFETY STANDARDSU60950-1, TUV EN60950-1, CCC GB4943 approved; Design refer to EN60335-1
WITHSTAND VOLTAGEI/P-O/P:3.75KVAC     I/P-FG:1.875KVAC     O/P-FG:0.5KVAC
ISOLATION RESISTANCEI/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C  / 70% RH
EMC EMISSIONCompliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, GB9254 ClassB
EMC IMMUNITYCompliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
OTHERSMTBF290.7K hrs min.  MIL-HDBK-217F (25°C)
DIMENSION199*99*30mm (L*W*H)
PACKING0.6Kg; 24pcs/15.4Kg/1.01CUFT
